Make sure bluetooth is enabled on your phone. If a Tydebox is within range, it will show up on this screen. Tap connect to establish a connection to the Tydebox.

*If someone is already connected to the Tydebox, they will have to disconnect before you can connect.

Drag down to refresh.

The main screen allows you to:

-Set backlight color

-Set Tydebox adjust time

-Set internal clock time and date

-Adjust the Tydebox bars now.

-View stats and settings- “i” icon in the top right

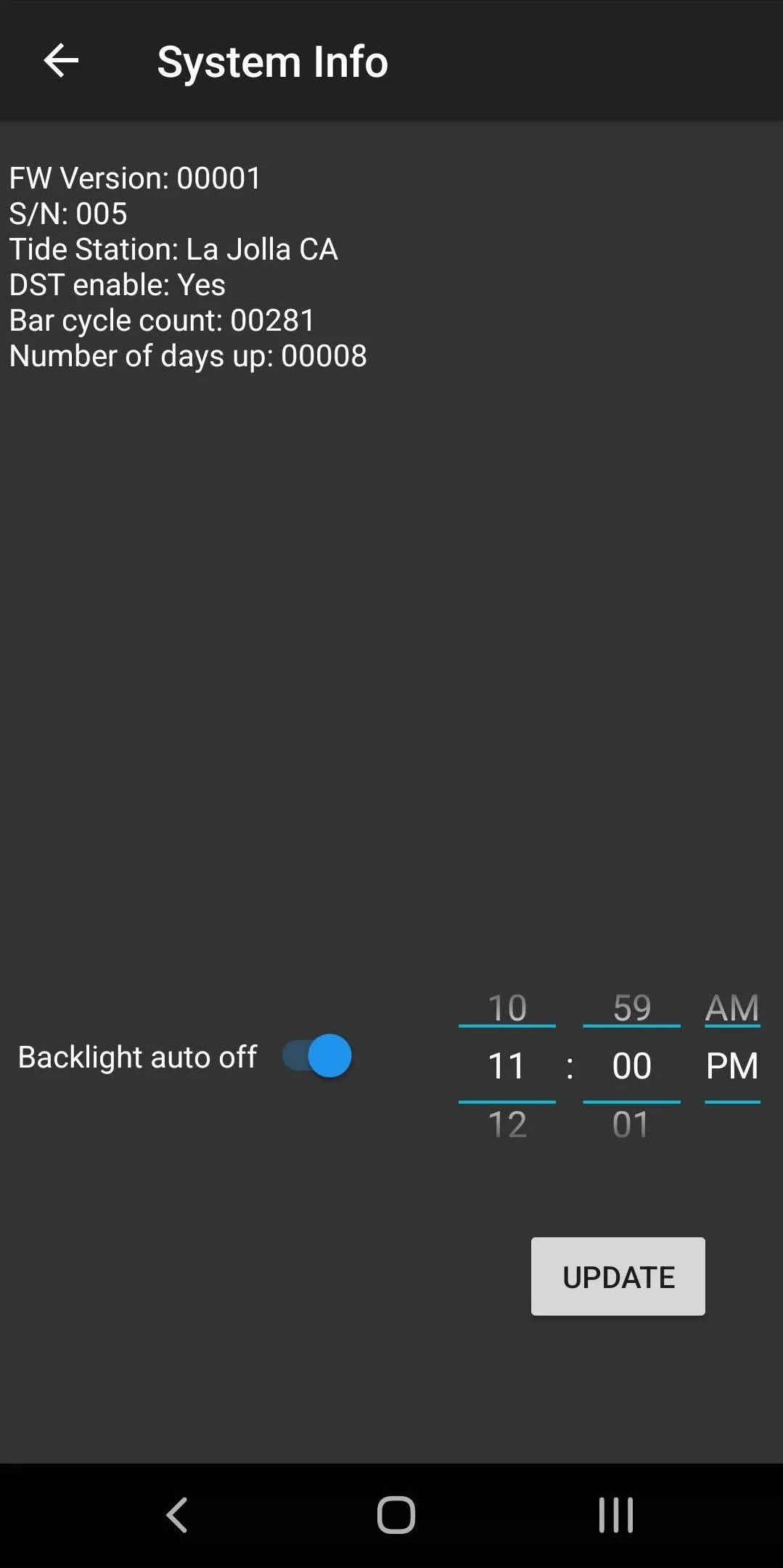

The settings page is accessed by tapping the “i” icon in the top right of the main screen.

The settings page shows some Tydebox stats as well as letting you set if you want the backlight to automatically turn off and at what time.

The RGB backlight can be changed to any color using the color picker screen. Adjust the color using the color wheel or adjust the white and black level sliders and tap the send button. If you would like to turn the backlight off, simply tap the turn off button.

The HEX codes are also displayed (R:0 G:255 B:93) correlating to the color selected. The range is 0-255.

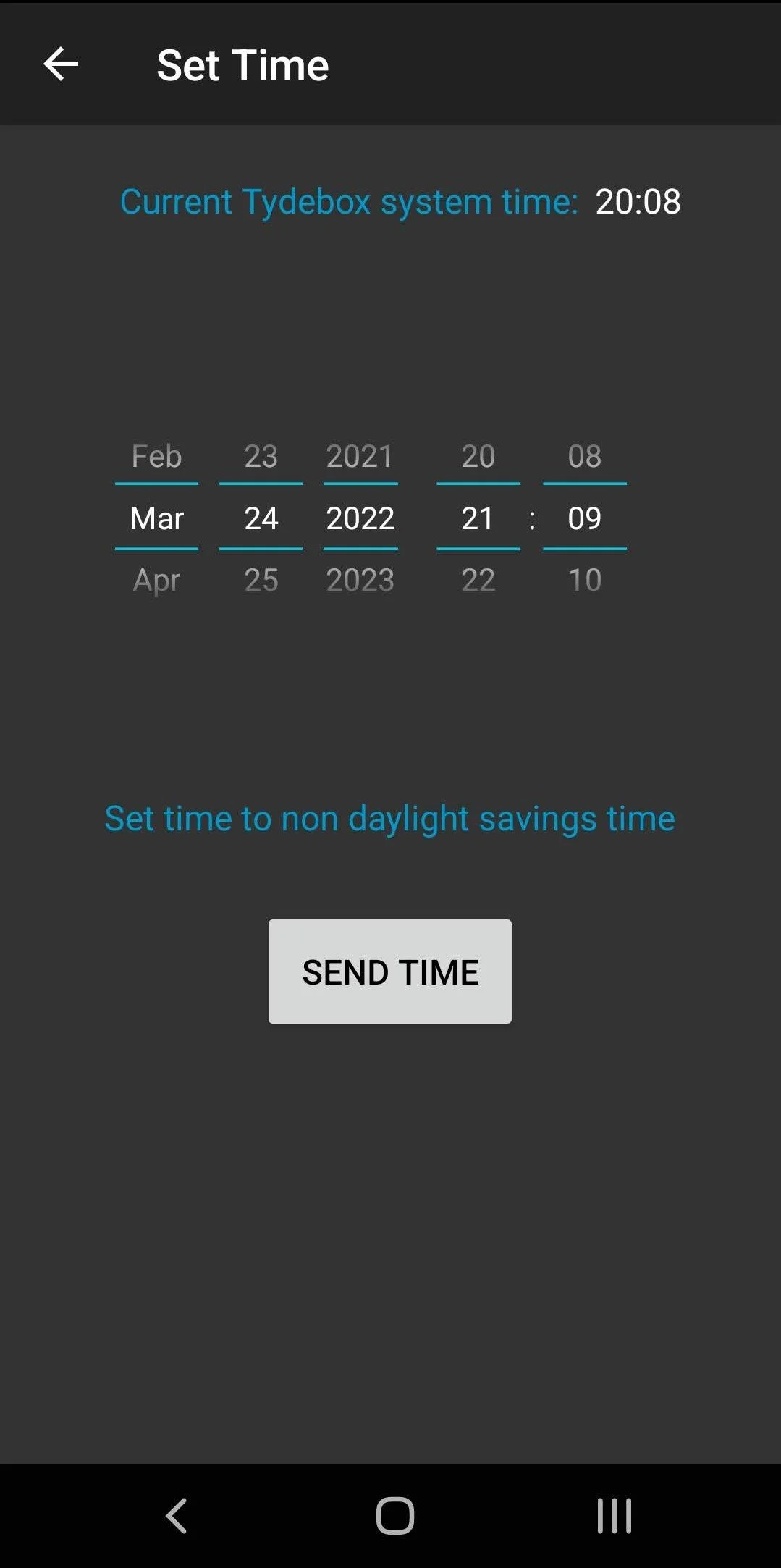

When entering this screen, the app will request the current system time from the Tydebox, this will be displayed on the top of the screen. A new system time can be selected from the time/date picker and then sent to the Tydebox with the Send time button.

*Make sure to set the time as if there were no daylight savings.

This is the time that the Tydebox will automatically adjust itself each day.

When entering this screen, the app will request the current adjust time from the Tydebox and display it on the top of the screen. If a new time is desired, select it from the time picker and tap the Send time button.
